GENERATORS
HYDRAULICS
The most convenient and cost-effective way to do various tasks that depend on electric power in all conditions.
Dynaset delivers premium electricity anywhere, anytime and for all jobsite needs.
Extra power for boats, ships, ROV's, Muncks, Mining, Trucks, Earthmoving Machines and any other equipment that has a hydraulic flow to power the generators. On land, air or sea, Dynaset is connected to assist with major energy needs.
Dynaset's HG unit generates high quality electricity in a range of 3.5-200 kVA power for all tools, lights, heaters, coolers, welding, single and three phase, etc.
Dynaset Hydraulics precisely regulates 60 Hz by an automatic frequency control. Automatic voltage control maintains a constant voltage of 115, 230 and 400 V, with any electrical load.
The Dynaset power station is up to 2/3 smaller than traditional stations and runs silently and reliably without additional engines and/or extra fuels.
Suitable for any type of machine that has a hydraulic flow, Dynaset is present in tractors, excavators, wheel loaders, pallet trucks, platforms, trucks, service vehicles, fire trucks, mining machines, boats, etc.
Electricity - High power and quality at any job site.
Electricity Generator Model: HG-6.5kwa
Dynaset's HG unit is maintenance free and installs directly on the machine. It doesn't take up any space or need special attention from the user like traditional generators.
Table of Models and Powers
GH
GENERATORS
VARIABLES
Stable high power electricity from idling to the engine at full throttle.
Machines Used: Trucks, vans, fire engines, rescue vehicles, boats and ships, power supplies, temperature controlled vehicles, etc.
Applications: AC electrical output from any motor at any motor speed: containers, heating, cooling, power tools, lights, etc.
Features: Hydraulic flow regulates generator speed: stable frequency at all times, no voltage fluctuation under variable load.
Distributable components for easy installation.
Additional hydraulic power outlets (PTO) available.
System Includes: Hydraulic Generator, Oil Cooler, Hydraulic Pump with Solenoid Control 12/24v.
PTO - Installation Alternatives
PTO

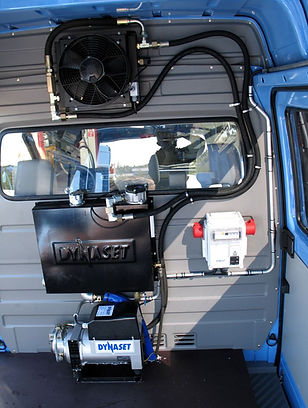

The compact and modular nature of Dynaset's HGV system allows for easy installation without taking up too much space.
PTO transmission with toothed belt for 30KW.
Crankshaft Cardan
Flexible coupling by crankshaft
PTO standard SAE and DIN factory type for gearbox or engine
PTO split on Cardan axis
HGV
Models
Workboats are ideal environments for DYNASET systems due to their powerful motors and electrical requirements. Fuel economy is instantly available.
DYNASET has the expertise to install hydraulic power take-offs on all engine systems.
GENERATORS
FOR WELDING
The lightest and most compact welding machine in the world - up to 400 A of current.
Machines Used: construction and mining machines, drilling machines, service vehicles, cranes, forestry machines, etc.
Applications: On-site wear parts repair, pipe welding, pipe coating, sheet metal, etc.
Features: Professional DC welding machine, easy creation of arc current range for all kinds of electrodes.
- Auxiliary AC socket for power tools.
- High durability design for outdoor use.
Includes: Automatic rotation speed control, sockets, overheat protection and soldering cables.
The following K series welding generators produce single-phase and three-phase maximum power at 50Hz. 60 Hz models available on request.
HWG
GROUND POWER HYDRAULIC GENERATOR
GHG
Onshore Hydraulic Power Generator.
Ground power always available for mobile engines and commercial vehicles.
Machine types: Aircraft tugs, tractors, trucks, airport service vehicles, etc.
Applications: Ground electricity for aircraft trailers, trailers, standby services, etc.
Features: Aviation standard 28V DC to 200A output (Optional: 110V @ 400 Hz).
- Easy and compact installation for any commercial vehicle.
Dynaset also offers: sources 115, 230 and 400 V, for vehicle cleaning equipment; pressure washers, for emptying toilet vehicles; HPW and pump system, for aircraft de-icing vehicles.
